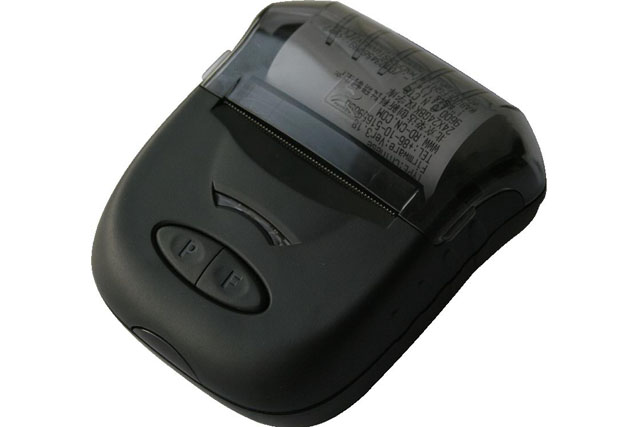

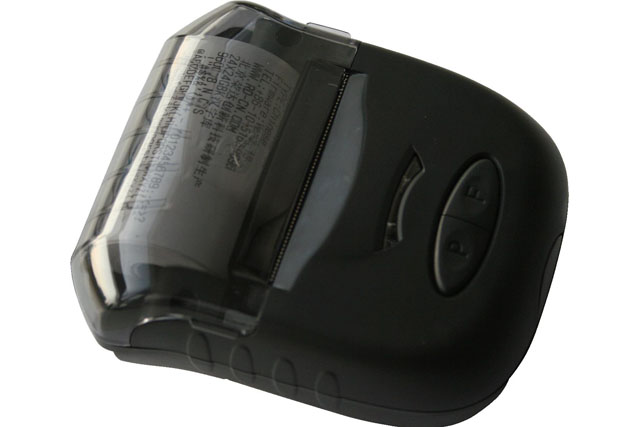

RD-V32~Beijing Rongda Science & Technology Co.,Ltd

The appearance is exquisite, the structure is light, the paper structure is easy to install, With Rechargeable battery , serial port, USB interface and the bluetooth interface , With standby sleep, automatic wake-up, black mark positioning, paper out detection, low-voltage alarm and other functions.
Built-in original imported printer core, widely used in mobile police systems, tobacco distribution systems, meter reading systems, mobile office systems, mobile logistics systems, portable instruments, testing equipment and other systems integrated use. It can also be used as a general-purpose POS printer.

Product specification

Printing Performance	Printing Method	Thermal Line Printing
	Printing Speed	60mm/s（full power）
	Resolution	203dpi（8dot/mm)，384dot/line
	Effective Printing Span	48mm
	Feeding Step	0.125mm
	Western Character	ANK、ASCII 12x24,8X16,8X12、International Character(12x24)
	Chinese Character	Standard 24×24 Dot GB18030 Character Set
	Barcode Printing	One-Dimensional UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、CODABAR、CODE93、CODE128、Two-Dimensional QRCODE、PDF417,Etc.
	Graphic Printing	Support
	Bitmap Printing	Support
	Bitmap Download	Support
Detection Function	Abnormal Detection	Lack of paper detection、Low voltage detection、overheating detection，Buzzer will alarm once abnormity appeared.
	Black mark location	Selectable
	Auto sleep function	yes
Interface	wired	Serial Port:PS2 Port(RS232orTTL)
	wired	485 Interface: PS2 Port USB Interface: 5PIN MiNiUSB
	wireless	Bluetooth
Control System	Buffer	8K
	Command System	ESC/POS Printing Command，Compatible With IBM/EPSON ESC/P
	Driver	WIN2000/NT/XP/WIN7
Power	Way of supply	2000mAh、7.2V Rechargeable Nickel Metal Hydride Battery,By 12.5%Print Density, 100m～200m Can be Printed Consecutively With Full Charging,Lithium battery is selectable.
Power	Way of charging	Stand by Charging, Charging Time: About 3 Hours, Stand by Time≧24Hour
Reliablity	Printer head life	50km
Paper	Paper type	Normal thermal paper,paper width 58±0.5mm, Outer diameter≤Ф33mm/paper thickness:0.06mm～0.07mm
	Loading Method	Clam shell ,Easy Loading
	Cutting Method	Manual
Physical Property	Working Temp. Humidity	0～50℃/10～80%RH(Relative Humidity)
	Storage Temp. Humidity	–20～60℃/10～90%RH(Relative Humidity)
	Weight(Not Including Printing Paper)	About 270g(including battery)
	Outlook size	108mmL×92mmW×45mmH
