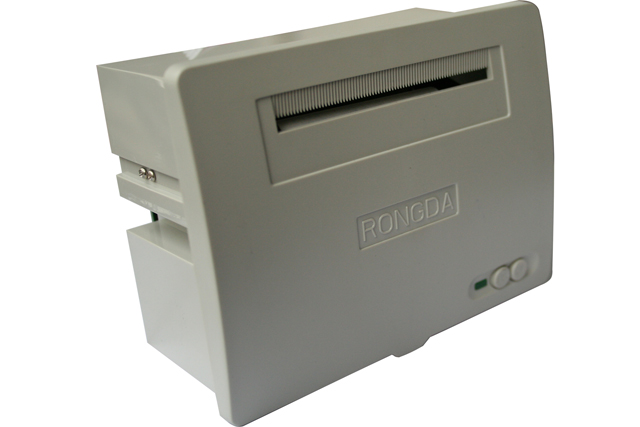

Main features:
◇Completely closed structure
◇easy paper loading|
Printing performance |
printing method |
thermal matrix printing |
|
Printing speed |
60mm/s |
|
|
Resolution ration |
8dots per millimeter ,384 dots per line |
|
|
Effective print width |
48mm |
|
|
Characters per line |
32 Characters per line |
|
|
characters |
(1)448 characters and graph block include 96 ASCII characters, 352 christcross-row (including Greek, German, Russian, French, etc), Japanese katakana, part of the Chinese characters, printing characters, graph block and 32 User-defined characters. (2)all Chinese character of GB2312 font , Foreign language characters and graph block : 8178 (total) |
|
|
Chinese characters |
Supply GB2312 font |
|
|
Character size or structure |
Foreign language characters: 5×7 graph block: 6×8 User-defined characters: 6×8 Chinese character: 24×24, 16×16 ,12×12 |
|
|
Detection function |
Anomaly detection |
lack of paper detection: yes |
|
Interface parameters |
out Interface |
Standard serial interface (RS232&TTL) standard parallel interface USB interface , 485 interface |
|
control system |
buffer |
32K |
|
instruction system |
print command: ESC/POS (Compatible with IBM/EPSON and ESC/P) |
|
|
Print drivers |
WIN98/2K/XP/NT, Special driving |
|
|
power supply |
DC power supply |
DC5V/3A, (user option: DC7V～36V), according to customer requirements, We can adjust the power consumption |
|
reliability |
MCBF |
5 million lines |
|
Printing paper |
Paper type |
Ordinary thermal Paper (width: 57±0.5mm，ø≤50mm) |
|
Physical characteristics |
Operating environment |
Temperature: -10～55℃ Humidity: 10～80%(RH) |
|
Storage temperature / humidity |
Temperature: -20～60℃ Humidity: 10～90%(RH) |
|
|
machine weight |
approximately 312g (excluding printing paper） |
|
|
Installation dimension (mm) |
Length 120mm× width 90mm× depth70mm |
|
|
outline dimension (mm) |
Length 128mm×width 98mm×depth 10mm |
